DIAMOND WHEEL
DIAMOND WHEEL - For Quartz Tile Cut-off Wheel

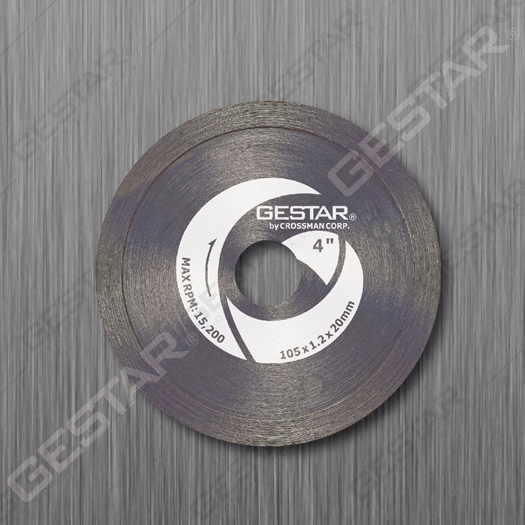

Continuous Rim (Wet) Cutting Blades


Continuous Rim (Wet) Cutting Blades
Item No. Diameter Segment's
Thickness (mm)
Arbor
(mm)
Max. Speed
RPM
inch  mm
155-323 4-1/4" 110 1.6 20 14,500
155-333 4-1/2" 115 1.6 22.23 13,500
155-343 5" 125 1.6 22.23 12,200
155-353 6" 150 1.6 22.23 10,200
155-363 7' 180 1.8 22.23 / 25.4 8,500
155-373 8" 200 1.8 22.23 / 25.4 7,600
155-383 9" 230 1.8 22.23 / 25.4 6,600
155-325 10" 250 1.8 22.23 / 25.4 6,100
155-393 12" 305 2.2 25.4 / 50 / 60 5,100
155-394 14" 355 2.4 25.4 / 50 / 60 4,400
